- inputThe input mesh that needs to be trimmed.
C++ Type:MeshGeneratorName
Unit:(no unit assumed)
Controllable:No
Description:The input mesh that needs to be trimmed.
- level_setLevel set used to cut the mesh as a function of x, y, and z.
C++ Type:std::string
Unit:(no unit assumed)
Controllable:No
Description:Level set used to cut the mesh as a function of x, y, and z.
CutMeshByLevelSetGenerator
This CutMeshByLevelSetGenerator object is designed to trim the input mesh by removing all the elements on outside the give level set with special processing on the elements crossed by the cutting surface to ensure a smooth cross-section. The output mesh only consists of TET4 elements.
Overview
The CutMeshByLevelSetGenerator is an extended version of CutMeshByPlaneGenerator. It is used to trim a 3D input mesh based on a given level set f(x,y,z)=0. The portion of the input mesh that is within the level set (i.e., f(x,y,z)<=0) is retained, while the portion of the input mesh that is outside the level set (i.e., f(x,y,z)>0) is discarded. The input mesh, given by "input", must be 3D and contain only first-order elements. The level set is specified by "level_set", which can be interpreted by FParser as a function of x, y, and z (i.e., f(x,y,z)). As each element that is across the cutting level set is cut based on the interception points, this mesh generator ensures a smooth cut instead of a "zigzag" cut along element boundaries.
Using this mesh generator, a 3D structured mesh defined by a bounding box (e.g., generated by GeneratedMeshGenerator) can be subtracted into a 3D mesh with its shape define by a given level set.
Methods

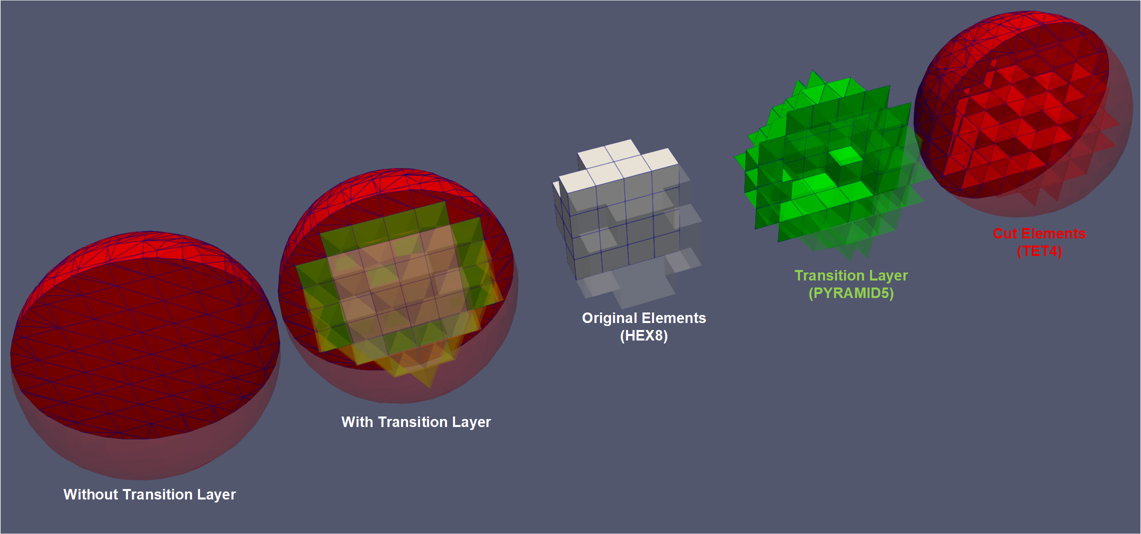

CutMeshByLevelSetGenerator first converts all elements of the input mesh into TET4 elements. Next, the TET4 elements sliced by the level set are further split into TET4 elements. This mesh generator uses exact the same algorithm as its sibling mesh generator, CutMeshByPlaneGenerator. At the first-order element level, cutting by a plane and cutting by a level set are the same.
Example Syntax
[Mesh]
[lsc]
type = CutMeshByLevelSetGenerator
input = block_1
level_set = 'x*x+y*y+z*z-0.81'
cut_face_id = 345
cut_face_name = ls
[]
[]
Input Parameters
- constant_expressionsVector of values for the constants in constant_names (can be an FParser expression)
C++ Type:std::vector<std::string>
Unit:(no unit assumed)
Controllable:No
Description:Vector of values for the constants in constant_names (can be an FParser expression)
- constant_namesVector of constants used in the parsed function
C++ Type:std::vector<std::string>
Unit:(no unit assumed)
Controllable:No
Description:Vector of constants used in the parsed function
- cut_face_idThe boundary id of the face generated by the cut. An id will be automatically assigned if not provided.
C++ Type:short
Unit:(no unit assumed)
Controllable:No
Description:The boundary id of the face generated by the cut. An id will be automatically assigned if not provided.
- cut_face_nameThe boundary name of the face generated by the cut.
C++ Type:BoundaryName
Unit:(no unit assumed)
Controllable:No
Description:The boundary name of the face generated by the cut.
- epsilon1e-12Fuzzy comparison tolerance
Default:1e-12
C++ Type:double
Unit:(no unit assumed)
Controllable:No
Description:Fuzzy comparison tolerance
Optional Parameters
- control_tagsAdds user-defined labels for accessing object parameters via control logic.
C++ Type:std::vector<std::string>
Unit:(no unit assumed)
Controllable:No
Description:Adds user-defined labels for accessing object parameters via control logic.
- enableTrueSet the enabled status of the MooseObject.
Default:True
C++ Type:bool
Unit:(no unit assumed)
Controllable:No
Description:Set the enabled status of the MooseObject.
- save_with_nameKeep the mesh from this mesh generator in memory with the name specified
C++ Type:std::string
Unit:(no unit assumed)
Controllable:No
Description:Keep the mesh from this mesh generator in memory with the name specified
Advanced Parameters
- disable_fpoptimizerFalseDisable the function parser algebraic optimizer
Default:False
C++ Type:bool
Unit:(no unit assumed)
Controllable:No
Description:Disable the function parser algebraic optimizer
- enable_ad_cacheTrueEnable caching of function derivatives for faster startup time
Default:True
C++ Type:bool
Unit:(no unit assumed)
Controllable:No
Description:Enable caching of function derivatives for faster startup time
- enable_auto_optimizeTrueEnable automatic immediate optimization of derivatives
Default:True
C++ Type:bool
Unit:(no unit assumed)
Controllable:No
Description:Enable automatic immediate optimization of derivatives
- enable_jitTrueEnable just-in-time compilation of function expressions for faster evaluation
Default:True
C++ Type:bool
Unit:(no unit assumed)
Controllable:No
Description:Enable just-in-time compilation of function expressions for faster evaluation
- evalerror_behaviornanWhat to do if evaluation error occurs. Options are to pass a nan, pass a nan with a warning, throw a error, or throw an exception
Default:nan
C++ Type:MooseEnum
Unit:(no unit assumed)
Controllable:No
Description:What to do if evaluation error occurs. Options are to pass a nan, pass a nan with a warning, throw a error, or throw an exception
Parsed Expression Advanced Parameters
- nemesisFalseWhether or not to output the mesh file in the nemesisformat (only if output = true)
Default:False
C++ Type:bool
Unit:(no unit assumed)
Controllable:No
Description:Whether or not to output the mesh file in the nemesisformat (only if output = true)
- outputFalseWhether or not to output the mesh file after generating the mesh
Default:False
C++ Type:bool
Unit:(no unit assumed)
Controllable:No
Description:Whether or not to output the mesh file after generating the mesh
- show_infoFalseWhether or not to show mesh info after generating the mesh (bounding box, element types, sidesets, nodesets, subdomains, etc)
Default:False
C++ Type:bool
Unit:(no unit assumed)
Controllable:No
Description:Whether or not to show mesh info after generating the mesh (bounding box, element types, sidesets, nodesets, subdomains, etc)
