Tutorial 15: Mosaic field generation (patches)
In this tutorial, we present a simpler approach to generating spatially varied perturbation fields compared to Tutorial 14.
The subapp patches.i first assigns random initial values to the Auxvariable scale (raw)
[ICs]
[raw]
type = RandomIC
variable = scale
max = 1
min = -2
seed = ${seed}
[]
[]
From this raw field, a material field is constructed using selected statistics (e.g., maximum, mean, minimum) within a selected range (e.g., normalized range of [0, 1] )
[Materials]
[sigma_ts]
type = ADParsedMaterial
property_name = 'sigma_ts'
constant_names = 'sigma_ts_raw'
constant_expressions = '${sigma_ts}'
coupled_variables = 'scale'
expression = 'sigma_ts_raw*(10+ceil(scale))/10'
output_properties = 'sigma_ts'
outputs = exodus
[]
[]
This coarse field, downsampled by patchref steps
[Mesh]
[ori]
type = GeneratedMeshGenerator
dim = 2
xmin = 0
xmax = 100
ymin = 0
ymax = 100
nx = '${fparse floor(100/max(1,pow(2,patchref)))}'
ny = '${fparse floor(100/max(1,pow(2,patchref)))}'
[]
[]
is then transferred to the fine mesh of the mainapp main.i
[Transfers]
[from_patches]
type = MultiAppGeneralFieldShapeEvaluationTransfer
from_multi_app = patches
variable = 'sigma_ts_var'
source_variable = 'sigma_ts'
displaced_source_mesh = false
displaced_target_mesh = false
execute_on = 'INITIAL'
[]
[]
The resulting fields are illustrated in the figure below.

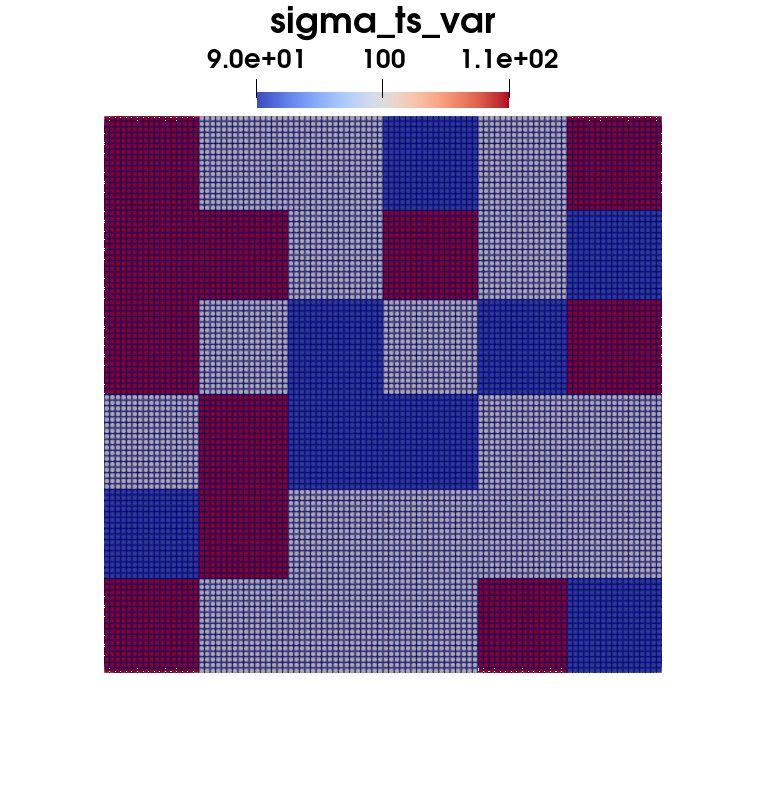

Fig. 1: Mainapp mosaic field .

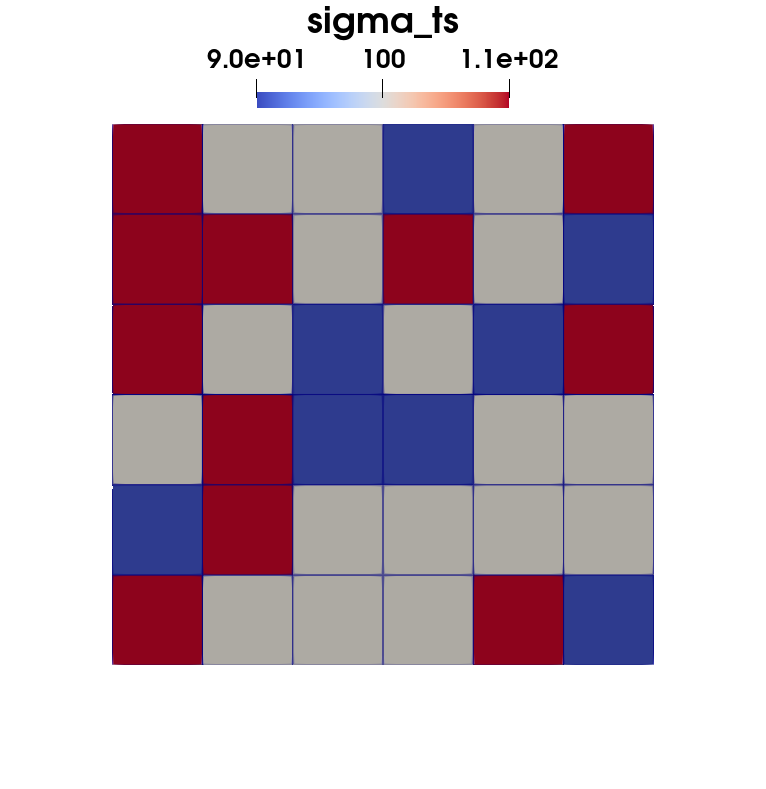

Fig. 2: Subapp field .

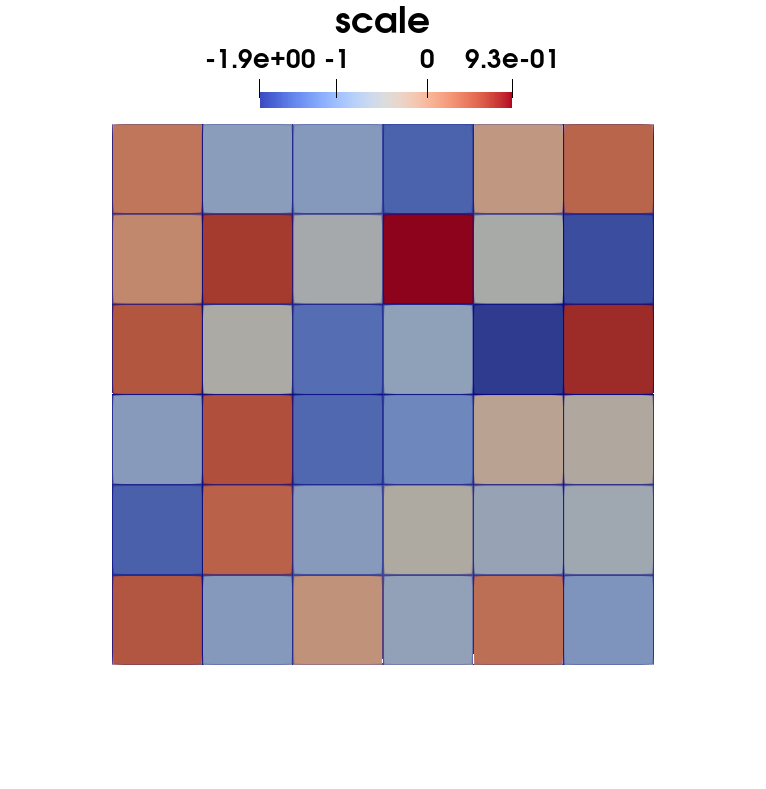

Fig. 3: Subapp scale variable.
(tutorials/patches/main.i)
patchref=4
seed=0
sigma_ts=100
filebase=patchref${patchref}
[Problem]
type = FEProblem
solve = False
[]
[MultiApps]
[patches]
type = FullSolveMultiApp
input_files = patches.i
cli_args = 'seed=${seed};sigma_ts=${sigma_ts};patchref=${patchref}'
execute_on = 'INITIAL'
[]
[]
[Transfers]
[from_patches]
type = MultiAppGeneralFieldShapeEvaluationTransfer
from_multi_app = patches
variable = 'sigma_ts_var'
source_variable = 'sigma_ts'
displaced_source_mesh = false
displaced_target_mesh = false
execute_on = 'INITIAL'
[]
[]
[Mesh]
[ori]
type = GeneratedMeshGenerator
dim = 2
xmin = 0
xmax = 100
ymin = 0
ymax = 100
nx = 100
ny = 100
[]
[]
[Variables]
[d]
[]
[]
[AuxVariables]
[sigma_ts_var]
order = CONSTANT
family = MONOMIAL
[]
[]
[Executioner]
type = Transient
solve_type = NEWTON
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package '
petsc_options_value = 'lu superlu_dist '
automatic_scaling = true
line_search = bt
compute_scaling_once = true
nl_rel_tol = 1e-8
nl_abs_tol = 1e-10
dt = 1
dtmin = 1e-5
end_time = 1
[]
[Outputs]
[exodus]
type = Exodus
[]
file_base = '${filebase}'
print_linear_residuals = false
[]
(tutorials/patches/patches.i)
[Problem]
solve = false
[]
[Mesh]
[ori]
type = GeneratedMeshGenerator
dim = 2
xmin = 0
xmax = 100
ymin = 0
ymax = 100
nx = '${fparse floor(100/max(1,pow(2,patchref)))}'
ny = '${fparse floor(100/max(1,pow(2,patchref)))}'
[]
[]
[AuxVariables]
[scale]
order = CONSTANT
family = MONOMIAL
[]
[]
[ICs]
[raw]
type = RandomIC
variable = scale
max = 1
min = -2
seed = ${seed}
[]
[]
[Materials]
[sigma_ts]
type = ADParsedMaterial
property_name = 'sigma_ts'
constant_names = 'sigma_ts_raw'
constant_expressions = '${sigma_ts}'
coupled_variables = 'scale'
expression = 'sigma_ts_raw*(10+ceil(scale))/10'
output_properties = 'sigma_ts'
outputs = exodus
[]
[]
[Executioner]
type = Transient
solve_type = NEWTON
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package '
petsc_options_value = 'lu superlu_dist '
automatic_scaling = true
line_search = bt
compute_scaling_once = true
nl_rel_tol = 1e-8
nl_abs_tol = 1e-10
start_time = 0
num_steps = 1
[]
[Outputs]
[exodus]
type = Exodus
[]
[]
